Smart Mirror

ECE4012L3A Dr. Smith

Accepted Written Proposal (.docx .pdf)

Proposal Presentation (.pptx .pdf)

Latest Project Summary (.docx .pdf)

Final Presentation (.docx .pdf)

Final Written Report (.docx .pdf)

Additional Supporting Documentation

Schematics

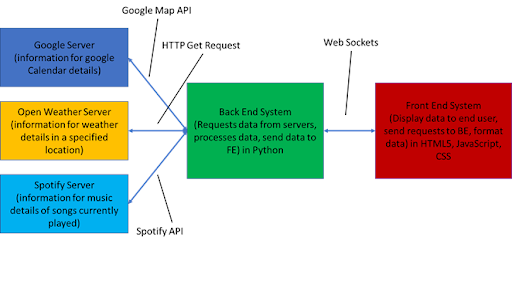

Figure 1. Diagram that shows how data was requested and exchanged for the software portion of the project. The connections between modules represent the exchange of the data.

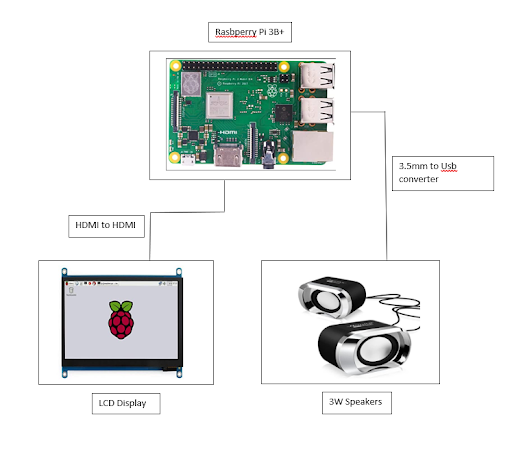

Figure 2. Basic schematic of the Smart Mirror (excluding the debugging components and unnecessary I/O sources).

Display of Modules

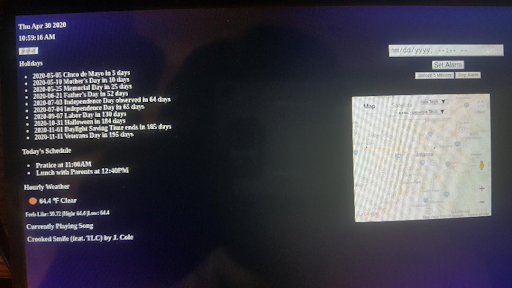

Figure 3. The applications for the Smart Mirror on the LCD. On the left side of the screen it shows the Time Application, Calendar Application (holidays), Calendar Application (today’s schedule), Weather Application, and Music Player Application from top to bottom of the screen. On the right side of the screen starting from top to bottom, the Alarm Alock Application and the Google Map Application are shown.

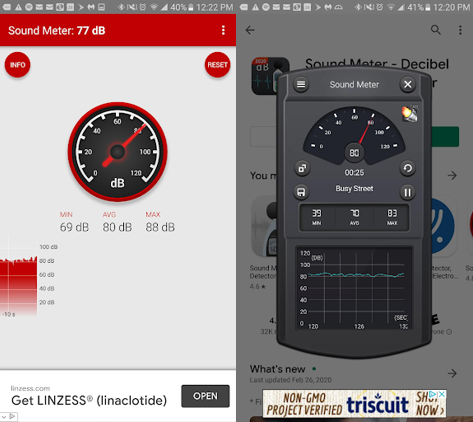

Figure 4. Image showing decibels reading for speakers during a playing song. The left image shows reading from Sound Meter by Splend Apps, the right image is from Sound Meter by Tool Devs.

Wiring and Hardware

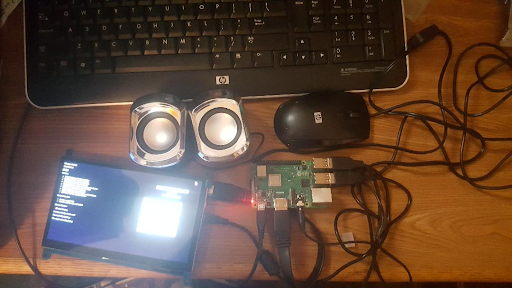

Figure 5. Wiring hook up for the Raspberry Pi. Components used for debugging are also included.

Video & Picture Galleries

Software
SeniorDesignCode.zip
